Certimus All-in-one Portable Seismometer

The next generation medium motion seismic station with a ± 90° tilt range

Certimus is an all-in-one portable, digital, broadband triaxial seismometer with state-of-the-art communication capabilities suitable for direct burial, surface and vault deployment.

Unlike other broadband instruments, Certimus can operate at angles up to 90° from level and has a wide frequency response of 120 s - 100 Hz.

The Certimus also benefits from a remotely adjustable long-period corner. The 1 and 10 second modes can be adjusted pre- or post-deployment and significantly reduce the settling time of the sensor.

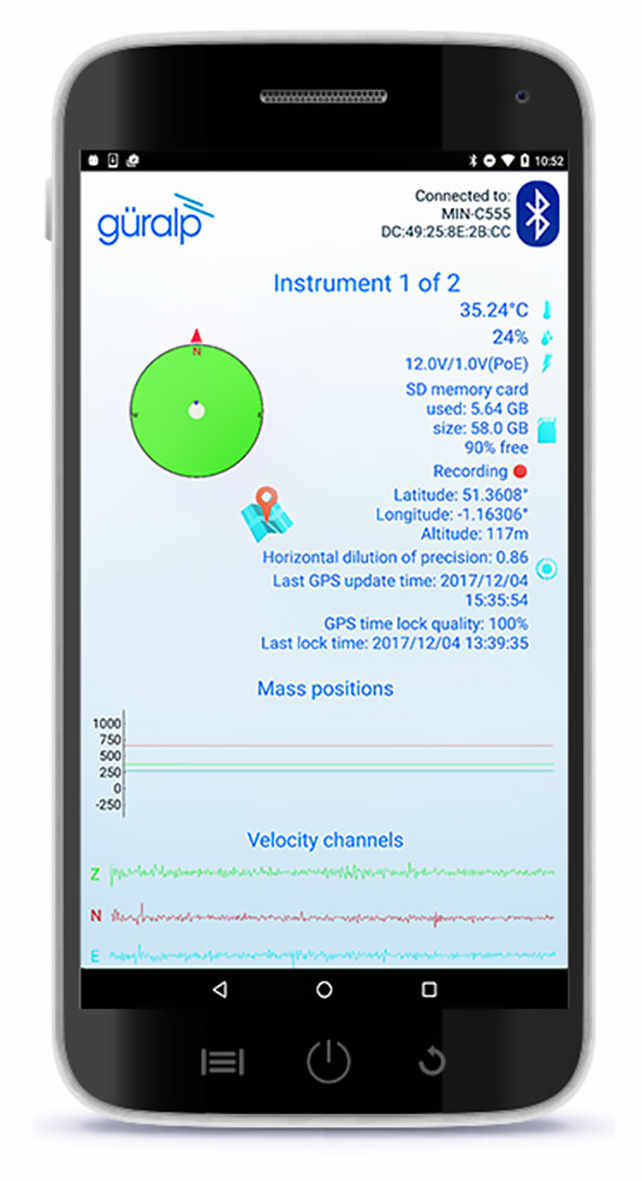

Power over Ethernet (POE) and Wi-Fi allow for plug-and-play deployments and the optional 2.4 inch multi-touch sensitive full colour LCD screen displays waveforms, instrument State-of-Health (SOH), gain settings, network configurations and a virtual instrument level.

Certimus is available with two variants:

Certimus for surface/vault installations

Certimus for direct burial

Applications

Local, regional and teleseismic monitoring

Temporary deployment in challenging environments or remote areas

Rapid deployment for aftershock monitoring

Microseismic and induced seismicity monitoring in the hydrocarbon market, e.g. fracture monitoring

Geothermal energy production monitoring

Permanent or rapid temporary deployment for volcanic unrest monitoring

Manufacturer: Guralp Systems Ltd.
